Evidenziare:
Clear span steel warehouse
, Anti-corrosion steel structure building
, Global logistics park warehouse
Standard: |
Dati di riferimento per la certificazione |
Arcareccio: |
C.Z Acciaio a forma di canale,C/Z Acciaio galvanizzato ((Q235) |
Trattamento superficiale: |
Galvanizzato a caldo, ripulitore ad esplosione, laminazione o verniciatura a sfera, galvanizzato |
Finestra: |
Legatura di alluminio,fenestra in PVC,acciaio plastico o legatura di alluminio |
Copertura: |
Pannello sandwich, lamiera di acciaio singolo, pannello sandwich EPS, PU, Rockwool. |
Telaio principale: |
H Trave e colonne, trave in acciaio solido a forma di H |
Trave: |
H Acciaio disponibile, tubi di acciaio, acciaio ad angolo, leghe H saldate/ laminate a caldo |
Porta: |
Porte scorrevoli, porte a persiana |
Personalizzazione: |
Disponibile |
Modello n: |
KXD-SSW181 |
Livello di granigliatura: |
Sa 2.5 |
Struttura principale: |
Struttura della struttura d'acciaio |
Trave di collegamento: |
Tubo tondo o tubo quadrato |
Tempo di campionamento: |
7 giorni se disponiamo di parti standard |
Colore: |
Omologazione doganale |
PROVA dei terzi: |
SGS, BV, ITS |
Tipo di fondazione: |
Concreto/acciaio |
Spessore: |
5-28mm |
Resistenza al fuoco: |
Materiali utilizzati resistenti al fuoco |
Costruito in fretta: |
Installazione facile |
Larghezza del web: |
7-28mm |
Vita utile: |
20-50 anni |
Tipo di connessione: |
Imbullonato, saldato |
| Prefabricated Steel Structure Building Description: QINGDAO KXD STEEL STRUCTURE CO.,LTD |

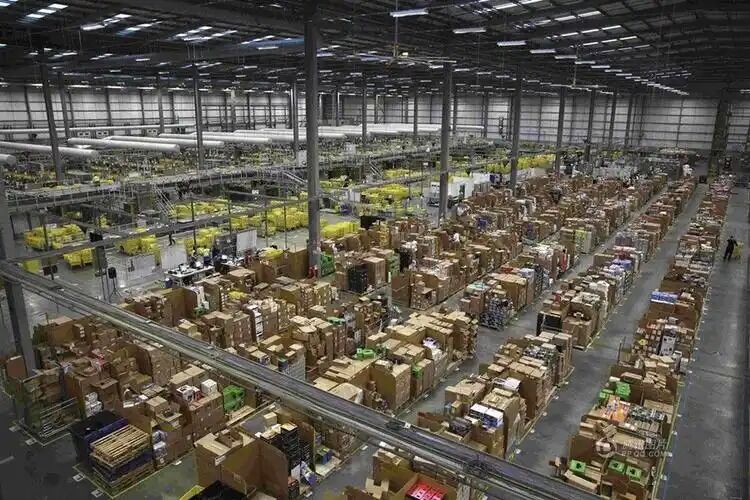

When investing in logistics facilities, more and more investors choose steel structures instead of traditional concrete buildings. The comprehensive advantages of steel construction bring long-term economic and operational benefits to logistics enterprises.
| Steel Structure Building Design |
|
|
| 1) Simple steel structure |
| Main structure |
Single span shorter than 18m,lower than 6m |
| Maintance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet |
| Door |
Simple steel rolling shutter(within 10m2) |
| Window |
Very few |
| Usage |
Warehouse,workshop, |
| Standard and suitable market |
Africa,mid-east, Australia (no snow,wind load below 0.4kn/m2) |
| (2) Standard steel structure |
| Main structure |
Single span shorter than 24m,lower than 8m |
| Maintance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or 50mm EPS sandwich panel |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse,workshop,shopping mall,exhibition,supper market |
| Standard and suitable market |
Snow loading below 0.5kn,wind loading below 0.5kn/m2 |
| (3) Cold region(heavy snow)steel structure |
| Main structure |
Single span shorter than 18m,lower than 6m |
| Maintance system |
Roof |
EPS/rock wool/PU sandwich board |
| Wall |
EPS/rock wool/PU sandwich board |
| Door |
PU foamed rolling door |
| Window |
Alu.Alloy, Hollow glass |
| Usage |
Warehouse, workshop, hangar, shopping mall, exhibition hall, supermarket |
| Standard and suitable market |
Cold regions such as Norway, Russia, North Canada, Finland, Greenland, Sweden,etc.(snow loading below 3kn, wind load below 1KN/M2) |
| (4)Steel structure with crane(5T,10T,20T) |
| Main structure |
Single span shorter than 20m,lower than 10m |
| Maintance system |
Roof |
Colored steel sheet with 50mm glass wool insulation |
| Wall |
Colored steel sheet or sandwich board |
| Door |
Wind resistance rolling door(within 15m2) |
| Window |
Alu.Alloy(can with skylight) |
| Usage |
Warehouse, workshop, hangar |
| Standard and suitable market |
Snow 0.5kn,wind load below 0.5kn/m2 |
Product Features
- High Strength: Engineered to support colossal weights, guaranteeing unwavering structural stability.
- Durability: Built to endure, our structures boast an impressive lifespan, withstanding wear and tear over time.
- Lightweight: Facilitates effortless transportation and swift installation.
- Quick Assembly: Prefabricated components are meticulously crafted for rapid construction and seamless assembly.
- Large span: Effortlessly bridges expansive spaces, minimizing the necessity for multiple interim support structures.
- Versatility: Perfectly adaptable, catering to a rich variety of architectural blueprints.
- Cost-Effective: Contributes to substantial savings in both long-term maintenance and upfront construction costs.
- Eco-Friendly: Constructed from recyclable steel, our products champion environmental sustainability and reduced ecological impact.
These Prefabricated Steel buildings are easy to assemble, energy efficient, attractive, economical over time, and can be shipped in as little as 5 weeks. Our Engineers and staff are always on standby to assist with complex projects.
Our steel structure building has a flexible layout, has low foundation cost, and can designed as per the buyer's requirement
1. Location (where will be built?) Which country? which city?
2. Size: Length * width * Eve height _______ mm * _______ mm * _______ mm
3. wind load (maximum. Wind speed) _____ kn/m2, _____ km/h, _____ m/s
4. snow load (maximum Snow height) _____ kn/m2, _____ mm, temperature range?
5. Anti-earthquake _____ level
6. brick wall needed or not If yes, is 1.2m high or 1.5m high? or other?
7. thermal insulation If yes, EPS, fiberglass wool, rock wool, and PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former.
8. Door quantity&size _____ units, _____ (width) mm * _____ (height) mm
9. window quantity&size _____ units, _____ (width) mm * _____ (height) mm
10. crane needed or not If yes, _____ units, max. Lifting weight____tons; Max. Lifting height _____m
Product Parameters
Main steel structure frame :
Material: Weld H beam or hot rolled H beam etc
Grade:Q355 (S355JR)
Surface: Hot dip Galvanized zinc coated or Anti-rust paint rich-zinc epoxy paint etc
Usage: Make up the main steel structure frame
|
Strut (Tie beam) on eave and ridge:
Material: Round pipe or square tube etc
Grade:Q235 (S235JR)
Surface: Hot dip Galvanized zinc coat or Anti-rust paint rich-zinc epoxy paint etc
Usage: Avoid the main steel structure frame shake in the length direction
X brace for roof and wall:
Material: Steel Round bar or angle steel etc
Grade:Q235 (S235JR)
Surface: Hot dip Galvanized zinc coat or Anti-rust paint rich-zinc epoxy paint etc
Usage: Make the whole structure stable, tie the whole building into one
● Windows and Doors
Plastic Steel Window/Aluminum-alloy Window; Sliding Door/Folding Door.
● Other Options:
The gutter, Downpipe, Transparent sheet, Ventilator, and Bridge Crane will be fitted according to the client’s requirements.
Our company can design, fabricate, load, and erect steel structure buildings according to clients’ needs.
1. Make suitable design plans and detailed construction drawings of steel structure buildings according to the land layout area and usage of buildings by Tekla, PKPM, and 3D3S.
2. Steel structure buildings consultation service.
3. Budget offers of building for contractors.
4. Transportation & delivery as your need.
5. Fabrication, shot blasting & painting as different requests.
6. Erection & installation of steel structure building. Our technicians and skilled workers can be on-site to guide or install the building as needed
Why Choose KXD Steel Structure Building?
1. One-stop service:
Total solution for projects; 3D model design; design drawing and construction drawing; online technical support; after service: return and replacement.
2. Well-equipped factory:
Our own factory-patented packaging and convenient transportation save you from worries.
3. High-quality products:
Our own professional research & development team and the QC team guarantee that our customers will receive products with perfect welding and accurate dimensions.
4. Rich experience:
Our products have been exported to America, Russia, Saudi Arabia, Canada, Romania, Sri Lanka, Malawi, British, the Philippines, Greece, South Africa, and so on.
5. Constantly develop:
We have been devoted to the research & development of steel structure buildings. And we constantly renovate technology to improve the wind- and rain-resistance performance of the products. So their lifespan can be enlarged and it helps accomplish the most cost-effective effect for our customers.
FAQ
Q: Are you a manufacturer or trading company?
A: We are a manufacturing factory, located in Qingdao City, near Qingdao Port. We have a total of 3 workshops from steel structures to wall and roof sheets.
Q: How about your quality control?
A: We have certificates ISO & CE. Products processing through cutting, bending, welding, shot blasting, ultrasonic testing, packing, storing, and loading to ensure no quality defects.
Q: Is third-party inspection available?
A: SGS, BV, TUV, etc. are available, it is according to client requirements.
Q: How about your delivery time?
A: Generally within 30-45 days, it is according to the order quantity, partial shipment is allowed for big orders.
Q: What about the installation?
A: We'll provide the detailed installation drawing, and supervisors guiding installation are available. We can do turnkey jobs for some kinds of projects.
Q: How to ensure the product you supply is what we want exactly?
A: The sales and engineering team will provide you with a suitable solution according to your requirements before placing an order. Proposal drawings, Shop drawings, 3D drawings, Materials photos, and Finished projects photos are available, which will help you understand the solution we provided deeply.
