Broiler Farm Plastic Slatted Dung Leaking Board Poultry Slat Floor For Chicken Chick Duck Goose

Broiler Farm Plastic Slatted Dung Leaking Board Poultry Slat Floor For Chicken Chick Duck Goose

Broiler Equipment in Cages

1. The luminance of the LED light can be adjusted to meet the demand of the different day old bird.
2. Feed conveying and dispensing system uses PE pipe and auger imported from South Africa. The feed conveying speed is fast. It is easy to maintain.

3. The floor is made of polypropylene. It will not damage the birds' feet. It can be drawn out when catching the birds. The efficiency of birds catching is high.

4. Lifting lateral birds conveying system.

Automatic Feeding System

Automatic Meanure Cleaning System

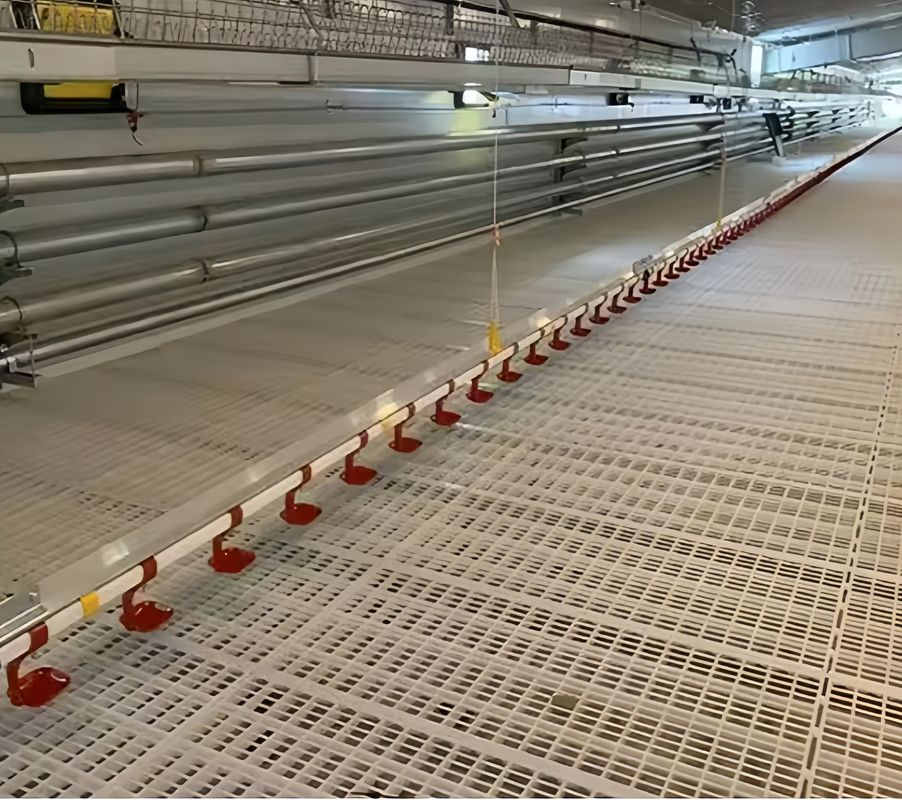

The Floor Description

1. Cell size:Length 3000mm,width 1820mm,height 450 mm. Raising areas is 5.46㎡.
2. The maximum raising density is 50kg/㎡. 110 birds can be put in each tier. For 3 tiers, 330 birds can be put per cage unit.For 4 tiers,440 birds can be put per cage unit. The distance between two adjacent cage frames should be more than 1.2m.
3. For each tier there are two watering lines and one feeding line. There are 2 feeding pans and 12 nipples for drinking.
4. The material of the main equipment is galvanized steel. The galvanization standard for main parts is more than 275g/㎡(accord with international standard GB/T2518-2008).The material has excellent anti-rust and anti-corrosion properties

4 tiers Battery Cage:2 to 4 times higher capacity compared to floor system,higher utilization of space reduced energy costs for heating or cooling.

The Floor SPecification

Other Components

The Chain Feeding System

• Chain feeding is characterized by fast feeding, low noise and stable operation.

• The feeding is evenly distributed and the old feed will be renovated.

• Each layer of feeding line operates independently, not affected the chicken feeding during the operation.

• The feeding line includes safety pins, and the motor is overloaded and cut to protect the motor.

• Stable and reliable operation and low maintenance requirements.

Package & Transportation

KXD Poultry Sheds

All of our KXD poultry sheds　are ISO 9001-2015 certified. Any third-party inspection will be accepted, such as SGS, BV, TUV etc. We also welcome OEM and ODM orders. So far, we have exported to more than 1,500 projects over 130 countries and regions around the world and accumulated rich experience in the design, fabrication and supply of steel buildings, as well as the erection of steel buildings, architectural materials, electrical systems .You can talk to our customer service center about your sourcing requirements.
